自動焊接設備一般由計算機軟件、送絲機及其調速控制系統、焊接電源、輔助設備、焊頭跟蹤或?qū)驒C構等組成。下面山東自動焊接設備廠家為您解答。

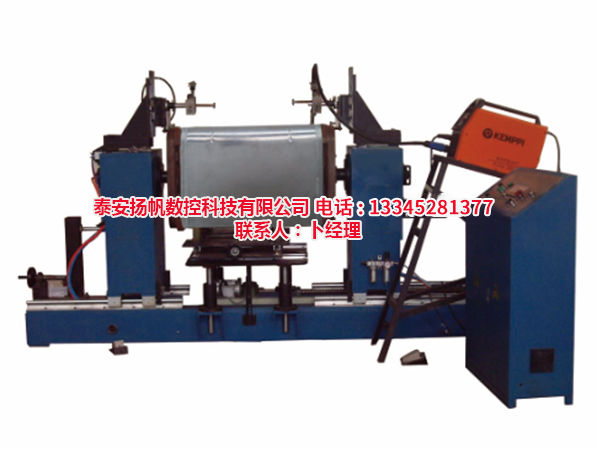

Automatic welding equipment generally consists of computer software, wire feeder and its speed control system, welding power supply, auxiliary equipment, welding head tracking or guiding mechanism, etc. Next, Shandong automatic welding equipment manufacturer will answer for you.

1、焊接電源、其輸出功率、焊接特性需要與建議的工藝方法相匹配，并配有連接到主控制器的接口。

1. The welding power supply, its output power and welding characteristics should match with the recommended process method, and should be equipped with an interface connected to the main controller.

2、送絲機及其調速控制系統對于送絲機速度控制精度要求較高的送絲機，控制電路需要加速度反饋。

2. The wire feeder and its speed control system require acceleration feedback for the wire feeder with high speed control accuracy.

3、焊頭。其運動機構由焊頭、焊頭支撐架、懸掛小車等組成，低于焊頭機構，其驅動系統需要采用帶編碼器的伺服電機。

3. Welding head. Its motion mechanism is composed of welding head, welding head support frame, suspension trolley, etc., which is lower than the welding head mechanism. Its drive system needs to use servo motor with encoder.

4、行走機構，如焊輥架、頭尾架翻轉機、轉臺、變位機等，活動行走機構需要由伺服電機驅動。

4. Traveling mechanism, such as welding roller frame, head and tail frame turner, turntable, positioner, etc., shall be driven by servo motor.

5、主控制器，又稱系統控制器，主要用于自動焊接設備各部件的鏈接控制，焊接程序的控制，焊接和擴展主要參數的設置、調整和顯示故障診斷和人機對話等控制功能。

5. The main controller, also known as the system controller, is mainly used for the link control of various parts of automatic welding equipment, the control of welding procedures, the setting, adjustment and display of main parameters of welding and expansion, fault diagnosis and human-machine dialogue and other control functions.

6、計算機軟件。設備中常用的軟件有編程軟件、功能軟件、系統和工藝方法軟件等。

6. Computer software. The commonly used software in the equipment includes programming software, functional software, expert system and process method software.

7、送絲系統、循環水冷卻系統、流量回收輸送裝置、焊絲架、拖鏈及電纜軟管機構結構設計、三部分電控設計等輔助裝置。

7. Auxiliary devices such as wire feeding system, circulating water cooling system, flow recovery and conveying device, welding wire rack, drag chain and cable hose mechanism structure design, three-part electric control design, etc.

8、焊頭跟蹤或?qū)驒C構、弧壓自動控制器、焊槍偏航及監控系統。

8. Welding head tracking or guiding mechanism, arc pressure automatic controller, welding gun yaw and monitoring system.

此外，根據用戶的需要，設備還會有其他部件，在購買設備時，可以根據實際工作需要選擇合適的設備類型使用。還有什么問題就來我們網站http://m.tinghaiwu.com咨詢吧！

In addition, according to the needs of users, the equipment will have other parts. When purchasing the equipment, you can select the appropriate equipment type to use according to the actual work needs. If you have any questions, please come to our website http://m.tinghaiwu.com Ask!
